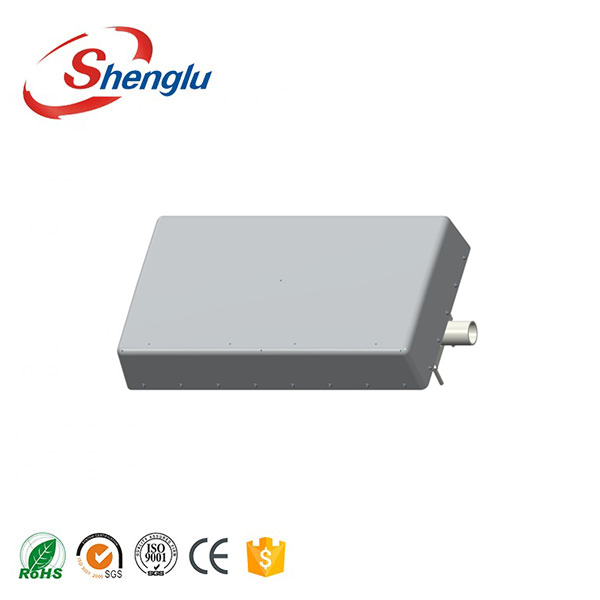

SL17324
Model No. SL17324A
Port Port1 Port2
Frequency range (MHz) 1710-2170 2300-2690 1710-2170 2300-2690
Polarization +45° -45° VSWR ≤ 1.5 ≤ 1.5
Gain(dBi) 10±1.5 10±1.5
Horizontal 3dB beam width(°) 45±7 45±7
Angle change from 3dB
drop to 20dB(Horizontal
beam width) (°)≤20 ≤20
Vertical 3dB beam
width(°) 45±7 45±7
Angle change from 3dB
drop to 20dB(vertical beam
width) (°)≤20 ≤20
-
