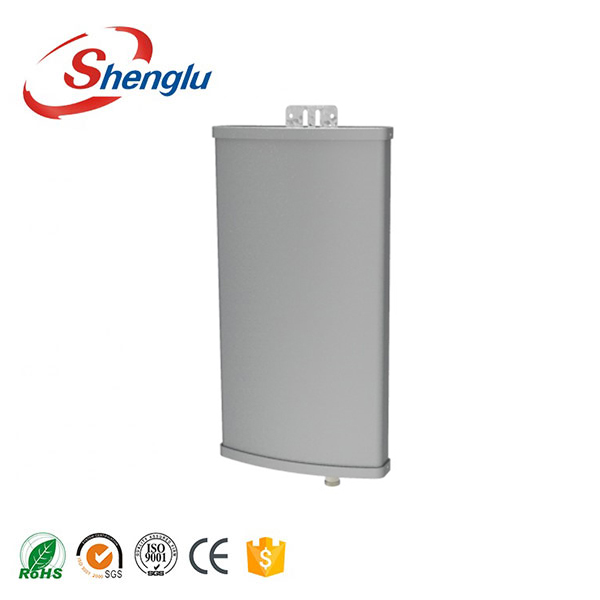

SL12474A
Model No. SL12474A/SL12474E
Frequency Range(Mhz) 698-960&1710-2700
698-800 800-960 1710-2200 2200-2700
Gain at mid Tilt(dBi) 10 11 11 11
Azimuth Beamwidth(°) 68 60 60 52
Front-to-Back Ratio(dB) 18 18 20 20
Elevation Beamwidth(°) 30 28 30 30
Electrical Downtilt(°) 0 0 0 0
VSWR 1.8
Polarization Vertical
Intermodulation
IM3(dBc) ≤-153(43 dBm carrier)
Impedance(Ω) 50
Max. Effective
Power per Port(W) 100
-
