• Base Station Antennas, Base Station Antennas Manufacturers, Sector Antennas

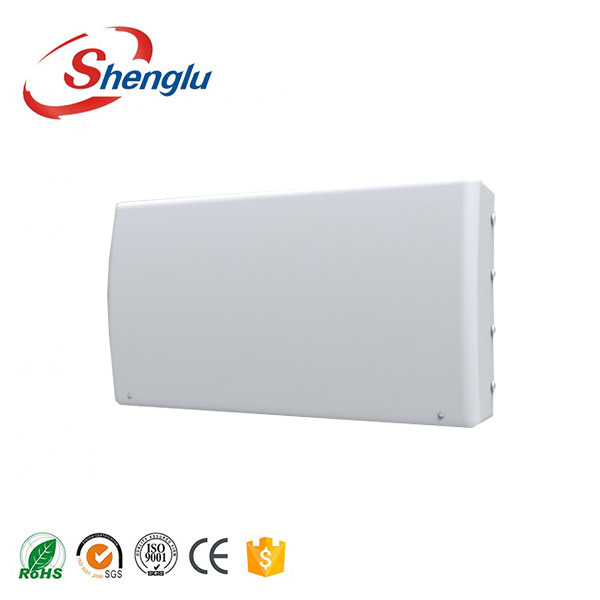

    SL12732A

    Model No. SL12732A/SL12732E
    FrequencyRange(Mhz) 698-960&1710-2700
    698-800 800-960 1695-18801850-19901920-2180
    Gain at mid Tilt(dBi) 11.1 11.8 10.9 11 11.3
    Azimuth Beamwidth(°) 34 30 34 33 31
    Front-to-Back Total Power at 180°±30°(dB) 22 22 27 27 27
    Elevation Beamwidth(°) 68 61 70 66 65
    Cross Polar Ratio at Boresight(dB) 20 20 17 17 17
    Electrical Downtilt(°) 0 0 0 0 0
    Cross Polar Isolation(dB) 25 25 25 25 25
    VSWR 1.5 1.5 1.5 1.5 1.5
