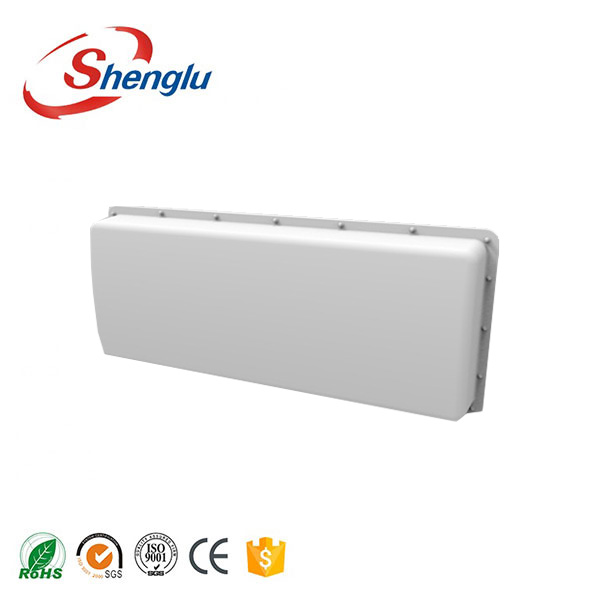

SL12992D
Model No. SL12992D
Frequency Range(Mhz)
698-960&1710-2700
698-800800-9601695-18801850-1990
1920-21802200-2700-2300-2360
Gain at mid Tilt(dBi) 12 13.4 12.3 12.6 13.2 13.5 13.5
Azimuth Beamwidth(°) 26 23 24 22 20 18 19
Front-to-Back Total Power at 180°± 30°(dB)
25 29 35 35 35 30 35
Elevation Beamwidth(°) 63 61 64 61 62 60 65
Cross Polar Ratio at Boresight(dB) 20 20 15 15 15 15 15
Electrical Downtilt(°) 0 0 0 0 0 0 0
Cross Polar Isolation(dB) 23 23 23 23 23 23 23
VSWR 1.7 1.7 1.8 1.8 1.8 1.8 1.8
-
