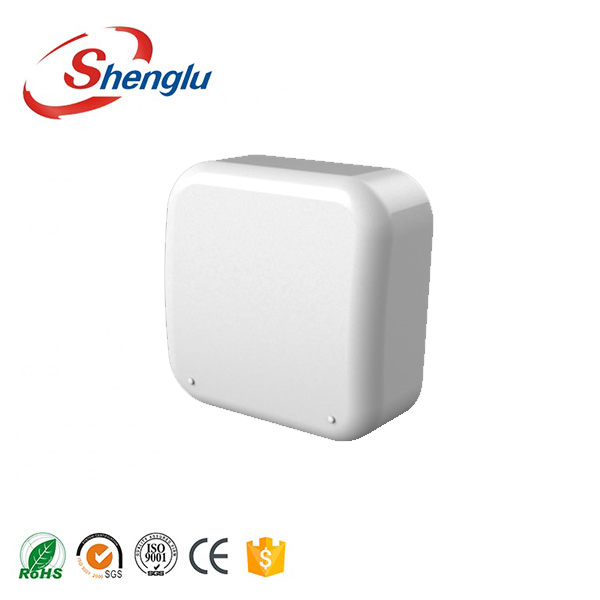

SL12904E
Model No. SL12904E
Frequency Range(Mhz) 698-960&1710-2700 698-800 800-
960-1695-1880-1850-1990-1920-2180-2200-2700-2300-2360
Gain at mid Tilt(dBi) 8.5 9.2 9.3 9.6 9.8 9.2 8.9
Azimuth Beamwidth(°) 62 59 55 52 55 62 70
Front-to-Back Total Power at 180°±30°(dB)
26 26 27 28 29 27 29
Elevation Beamwidth(°) 62 58 55 54 55 59 65
Cross Polar Ratio at Boresight(dB) 24 24 20 20 20 20 20
Electrical Downtilt(°) 0 0 0 0 0 0 0
Cross Polar Isolation(dB) 30 30 30 30 30 30 30
VSWR 1.9 1.9 1.8 1.8 1.8 1.8 1.8
-
