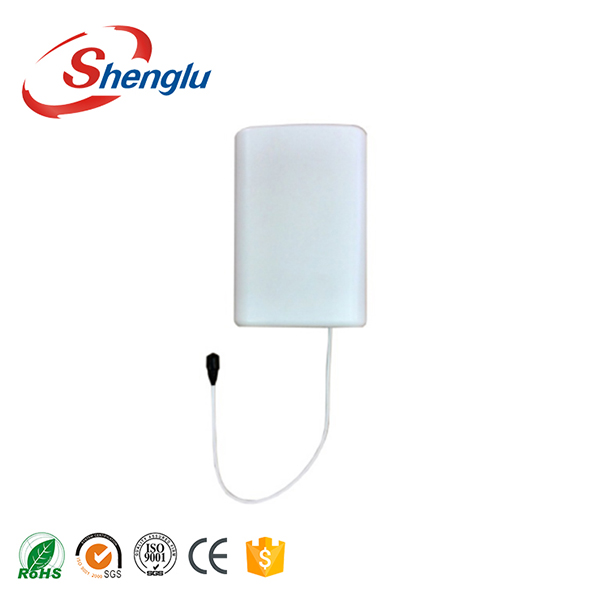

SL15525T 6/8dBi Wall Mount Antenna
Frequency range (MHz) 698 - 960 1710 - 2700
Polarization Vertical
VSWR ≤ 1.5 ≤ 1.5
Gain (dBi) Approx. 6 Approx. 8
Horizontal half-power beam width (°) 90±15 (698 - 800 MHz)
85±15 (800 - 960 MHz) 85±15
Vertical half-power beam width (°) 80 (698 - 800 MHz)
75 (800 - 960 MHz) 60
PIM, 3rd Order (dBc) ≤-153 (2 x 43 dBm carrier)
Front to back ratio (dB) ≥ 10
Average power, maximum (W) ≥ 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
