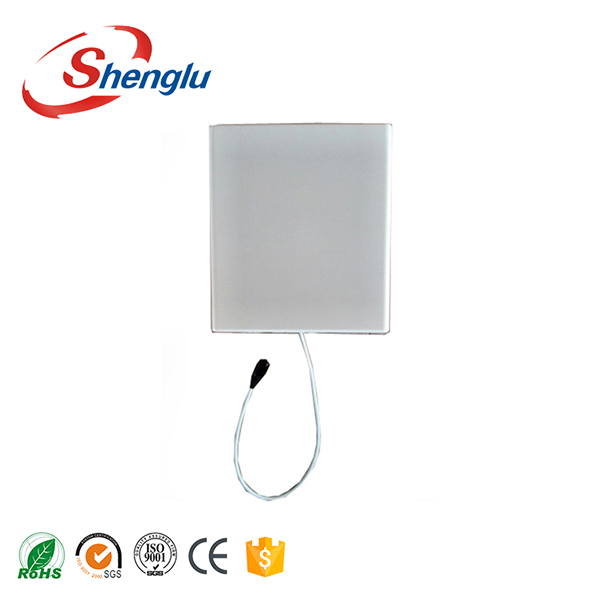

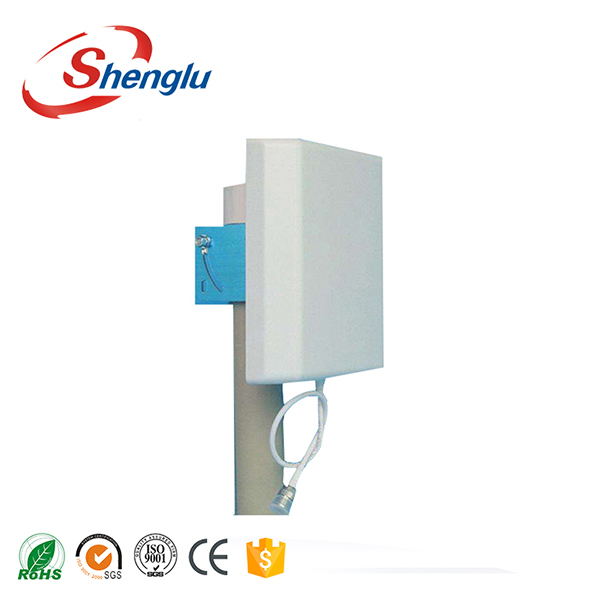

SL15638E Wall Mount Antenna
Frequency range (MHz) 380 - 800 800-960 1710-2700
Polarization Vertical
VSWR ≤ 2.0
Gain (dBi) ≥3 ≥3 ≥5
Horizontal half-power beam width (°) 80 80 60
Vertical half-power beam width (°) 70 70 50
Front to back ratio (dB) ≥5 ≥8 ≥10
PIM, 3rd Order (dBc) ≤ -140 (2 x 33 dBm carrier)
Average power, maximum (W) 50
Impedance (Ω) 50
Grounding DC Ground
-
