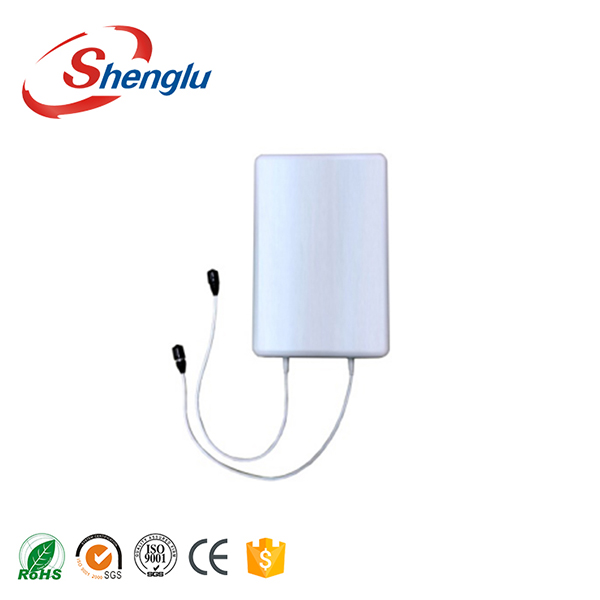

SL15943T MIMO Wall Mount Antenna
Port Port1 Port2
Frequency range (MHz) 698 - 960 1710 - 2700 698 - 960 1710 - 2700
Polarization ±45° ±45° VSWR ≤ 1.5 ≤ 1.5
Gain (dBi) Approx. 7 Approx. 8 Approx. 7 Approx. 8
Horizontal half-power beam width (°) 70 ± 15 70 ± 15
Vertical half-power beam width (°) 80 (698 - 800 MHz)
70 (800 - 960 MHz) 60 80 (698 - 800 MHz)
70 (800 - 960 MHz) 60
Front to Back Ratio (dB) ≥15 ≥15
Isolation (dB) ≥20 ≥20
PIM, 3rd Order (dBc) ≤-153 (2 x 43 dBm carrier)
Average power, maximum (W) ≥ 50
Impedance (Ω) 50
Grounding DC Ground
-
