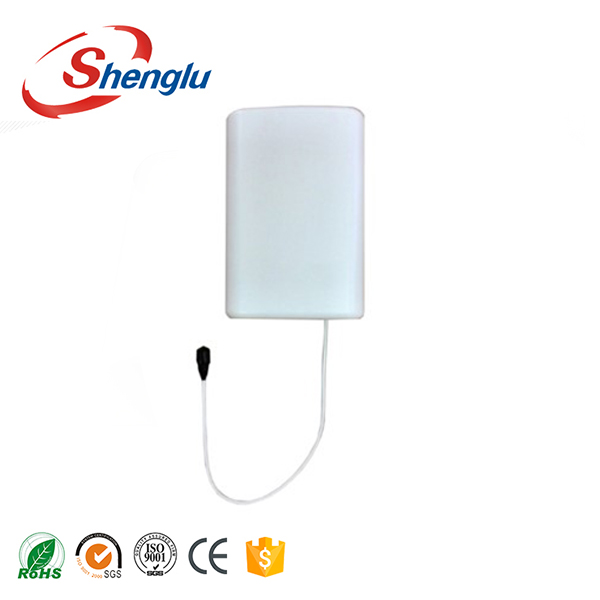

SL15989B Wall Mount Antenna
Frequency range (MHz) 698 - 960 1710 - 2700 3300-3800
Polarization Vertical
VSWR ≤ 1.8
Gain (dBi) Approx. 6 Approx. 7 Approx. 8
Horizontal half-power beam width (°) 90 85 60
Vertical half-power beam width (°) 80 60 55
PIM, 3rd Order (dBc) ≤-153 (2 x 43 dBm carrier)
Front to back ratio (dB) ≥ 10
Average power, maximum (W) ≥ 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
