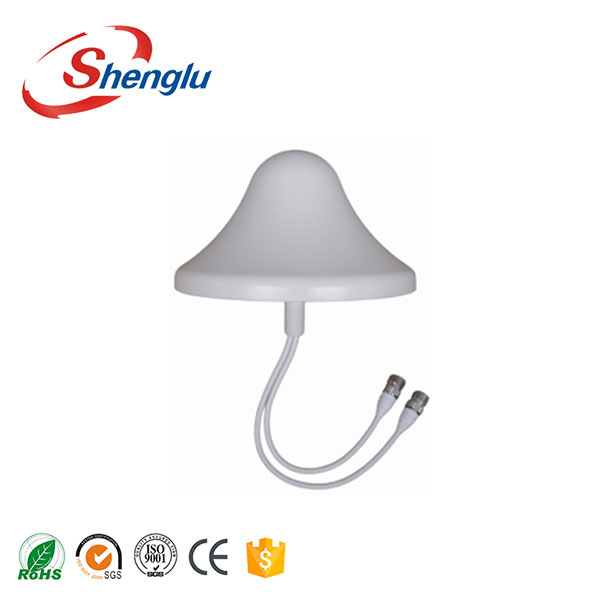

SL15917A MIMO Omnidirectional Ceiling Antenna
Port Port1 Port2
Frequency range (MHz) 698 - 800 800-960 1710 - 2700 1710-2700
Polarization Vertical Horizontal
VSWR ≤ 1.8 ≤ 1.8 ≤ 1.8
Gain (dBi) Approx.1.5 Approx.3.5 Approx.3.5
Horizontal half-power beam width (°) 360
PIM, 3rd Order (dBc) ≤ -153 (2 x 43 dBm carrier)
Isolation (dB) ≥ 25
Average power, maximum (W) 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
