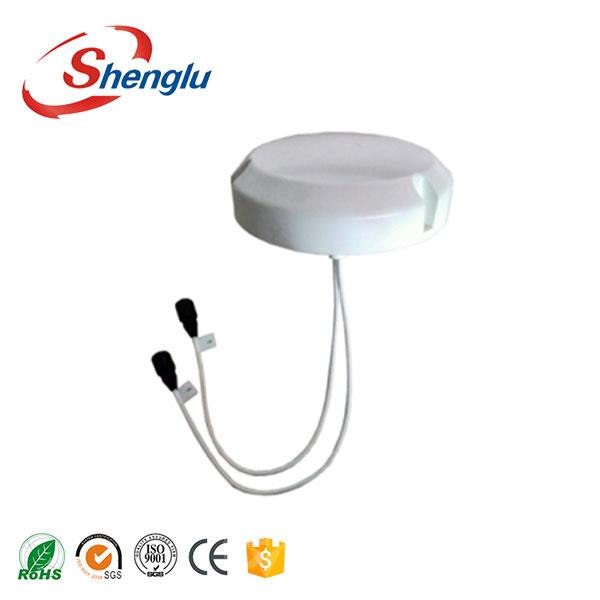

SL15630E MIMO Omnidirectional Ceiling Antenna
Port Port1 Port2
Frequency range (MHz) 698 - 960 1710 - 2700 3300-3800 698-960 1710-2700 3300-3800
Polarization Vertical Vertical
VSWR ≤ 1.8 ≤ 1.8
Gain (dBi) Approx.4 Approx.5
Isolation (dB) ≥20 ≥20
Horizontal half-power beam width (°) 360 360
Vertical half-power beam width (°) 85 55 85 55
PIM, 3rd Order (dBc) ≤-153 (2 x 43 dBm carrier)
Average power, maximum (W) 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
