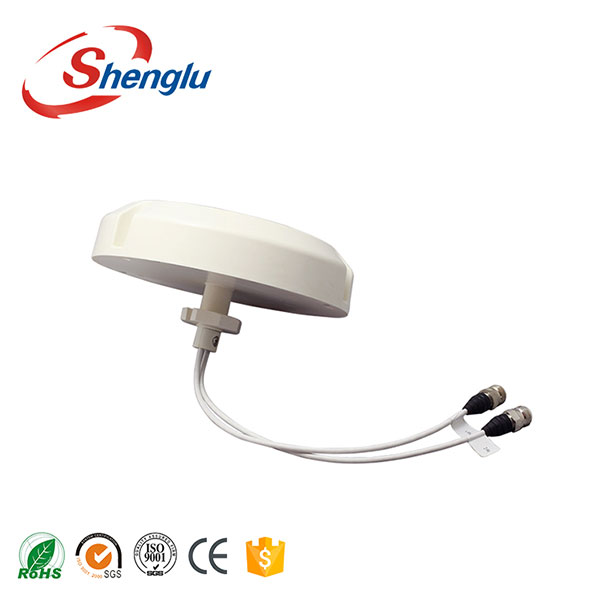

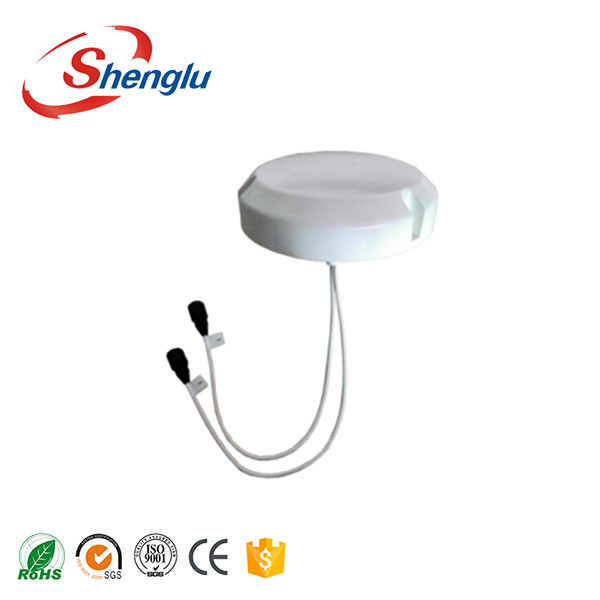

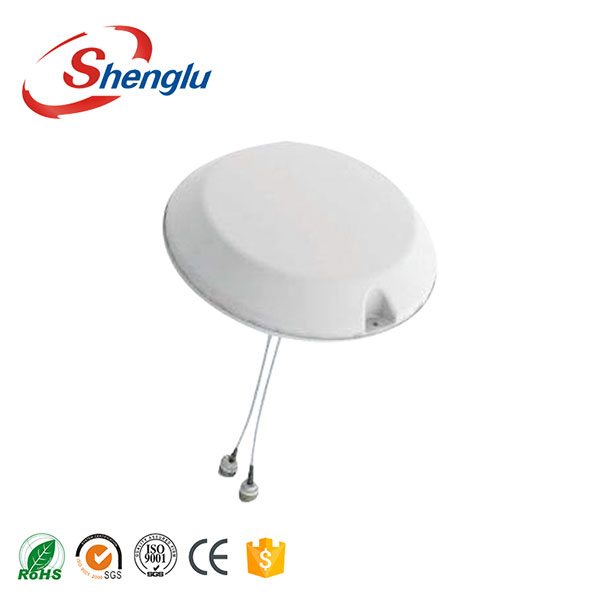

SL15630K MIMO Omnidirectional Ceiling Antenna
Port Port1 Port2
Frequency range (MHz) 698 - 960 1710 - 2700 698 - 960 1710 - 2700
Polarization Vertical Vertical
VSWR ≤ 1.8 ≤ 1.8
Gain (dBi) 4±1 5±1.5 4±1 5±1.5
Isolation (dB) ≥20 ≥20
Horizontal half-power beam width (°) 360 360
PIM, 3rd Order (dBc) ≤ -153（2 x 43 dBm carrier）
Average power, maximum (W) 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
