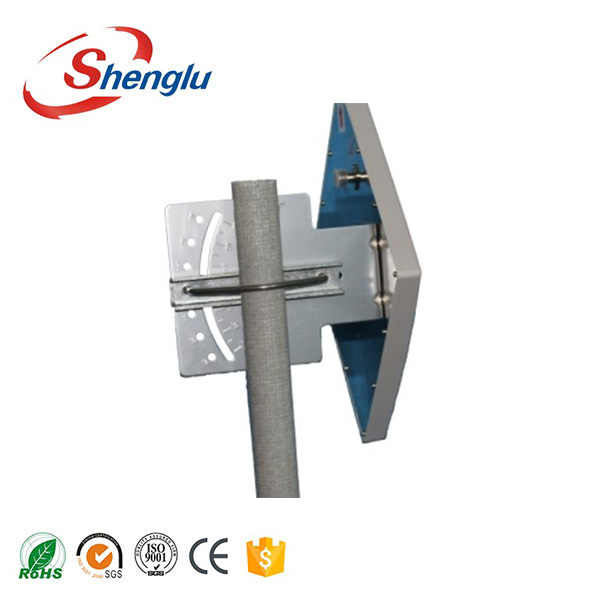

SL12806A
Model NO. SL12806A
Frequency Range (MHz) 2400-2500
Gain(dBi) 14
Horizontal Beam Width(3dB)(°) 30
Vertical Beam Width(3dB)(°) 30
Electrical Downtilt(°) 0
VSWR ≤1.5∶1
Isolation between Ports(dB) ≥28
Cross Polarization Ratio(dB)
Upper Sidelobe Suppression(dB)
Null-Fill(dB)
Front to Back Ratio(dB) ≥28
Polarization X
Input Maximum CW Power(W) 50
PIMD 3th
Impedance(Ω) 50
Input Connector N-female
-
Description
