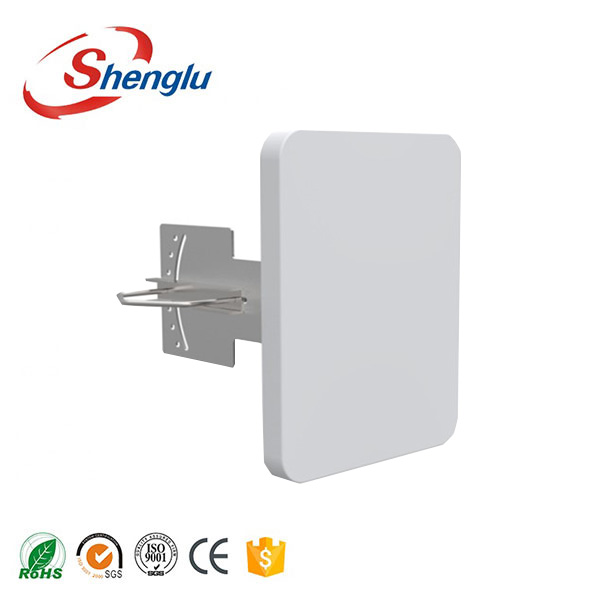

SL12006A
Model NO. SL12006A
Frequency Range (MHz) 2400~2500/5150
~5850
Gain(dBi) 13±1 / 10±1
Horizontal Beam Width(3dB)(°) ＜36
Vertical Beam Width(3dB)(°) ＜36
Electrical Downtilt(°) 0
VSWR ≤2∶1 / ≤2.4:1
Isolation between Ports(dB) ＞20
Cross Polarization Ratio(dB) N/A
Front to Back Ratio(dB) N/A
Polarization H&V
Input Maximum CW Power(W) 2
PIMD 3th N/A
Impedance(Ω) 50
Input Connector 4*U.FL
-
