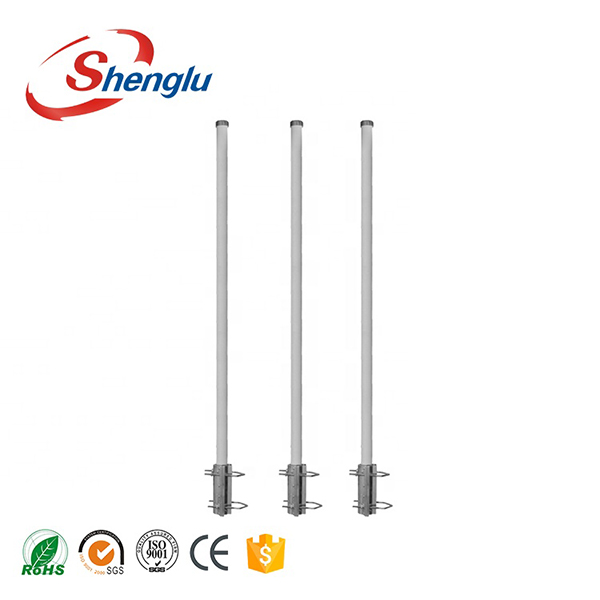

SL13231D

Electrical Specifications
Frequency Range 870-960MHz
VSWR ＜1.5
Input Impedance 50Ω
Gain 11±0.5dBi
Polarization Vertical
Horizontal Beamwidth(3dB) 360°
Vertical Beamwidth (3dB) 6.5±2°
Electrical Downtilt 3°
Max, power 500W
Connector Type 7/16DIN Female
Intermediation IM3 ≤-107dBm
Lightning Protection DC ground
Mechanical Specifications
Height ≤3m
Weight 6kg
Rated Wind Velocity 210km/h
Diameter of installation pole φ50－φ80 mm
Working Temperature -40℃~+60℃
