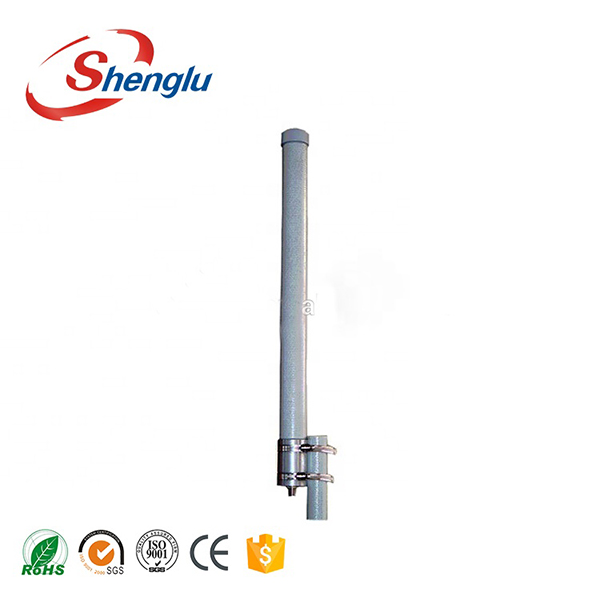

SL13009A

Model SL13009A
Main Technical Specifications
Frequency Range 5725-5850MHz
VSWR ≤1.5
Gain 12dBi
Rated power 5W
Polarization Type Vertical
Electrical Downtilt 0°
Beam Width(1/2 Power Points) 6°
Rated Wind Diameter 220Km/h
Input Impedance 50Ω
Lightning Protection DC ground
Connector Type N-female
Length ≤0.7m
Weight 0.7kg
Element Housing Material FRP
Ambient temperature -40℃-+60℃
Ambient humidity 5%-95%
