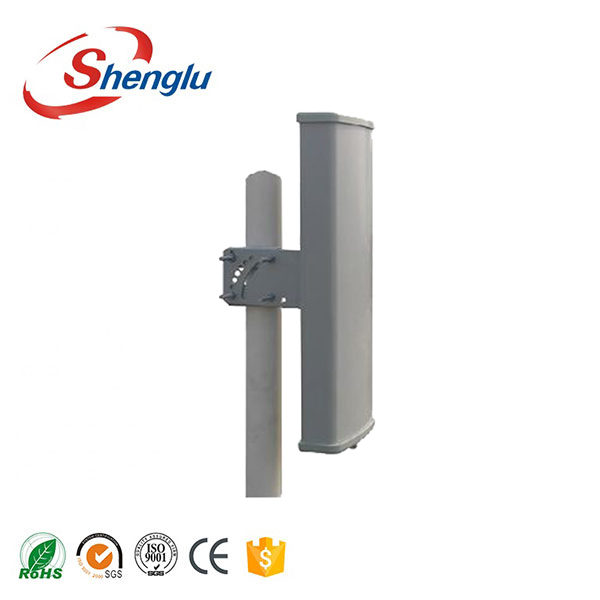

SL12941A

Model NO. SL12941A
Frequency Range (MHz) 5150-5850
Gain(dBi) 19
Horizontal Beam Width(3dB)(°) 15
Vertical Beam Width(3dB)(°) 15
Electrical Downtilt(°) 0
VSWR ≤2∶1
Isolation between Ports(dB) ≥25
Cross Polarization Ratio(dB)
Upper Sidelobe Suppression(dB)
Null-Fill(dB)
Front to Back Ratio(dB) ≥25
Polarization V&H&V
Input Maximum CW Power(W) 100
PIMD 3th
Impedance(Ω) 50
Input Connector 3*N-Female
