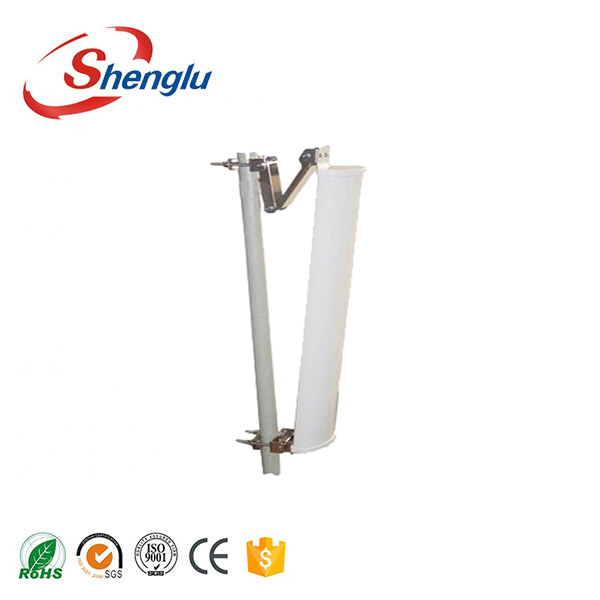

SL12034A

Model NO. SL12034A
Frequency Range (MHz) 2400~2500
Gain(dBi) 16±1
Horizontal Beam Width(3dB)(°) 120±12° Vertical Beam Width(3dB)(°) 7±1° Electrical Downtilt(°) 0
VSWR ≤1.5∶1
Isolation between Ports(dB) /
Cross Polarization Ratio(dB) /
Upper Sidelobe Suppression(dB) /
Null-Fill(dB) /
Front to Back Ratio(dB) ≥21
Polarization Vertical
Input Maximum CW Power(W) 300
EFF /
Impedance(Ω) 50
Input Connector N-Female
