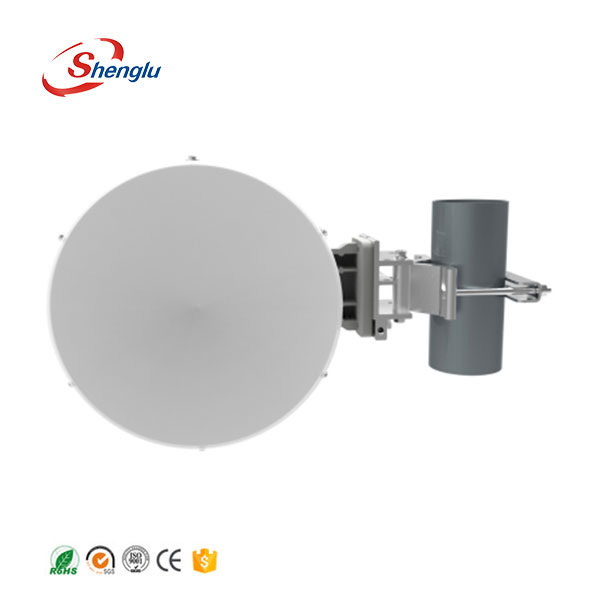

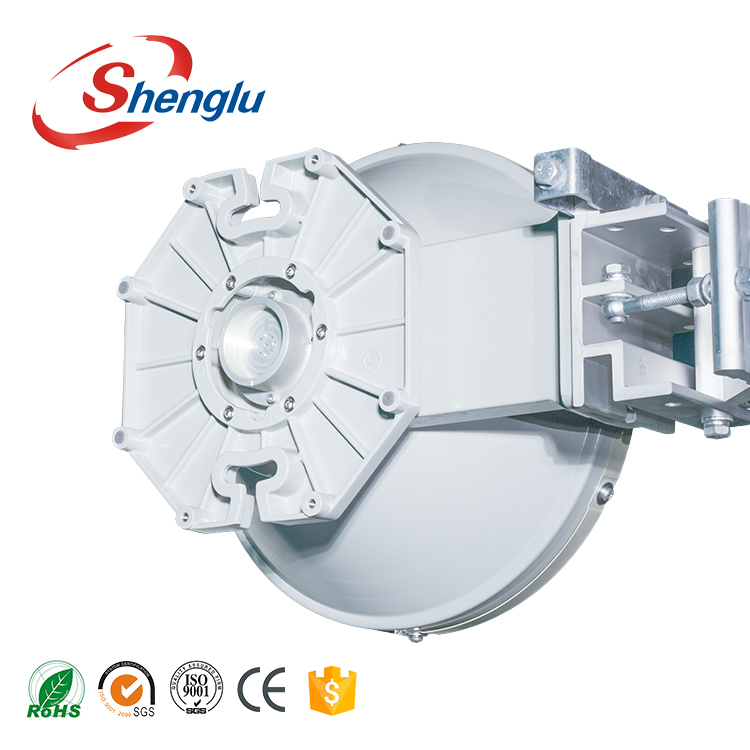

0.3m Ultra High Performance Antenna Integrated Dual-polarized
Electrical Specifications
Frequency (GHz) 71~86
Polarization Dual(V & H)
Gain , Low(dBi) 43.5
Gain, Mid(dBi) 44.5
Gain, Top(dBi) 45.5
Beam Width 0.7°
Cross-pol. Discrimination_XPD (dB) 27
F/B Ratio (dB) 62
ISO.(dB) 35
VSWR / RL (dB) 1.5/14
Regulatory Compliance ETSI EN 302217 Range 7 Class 3
-
Description
