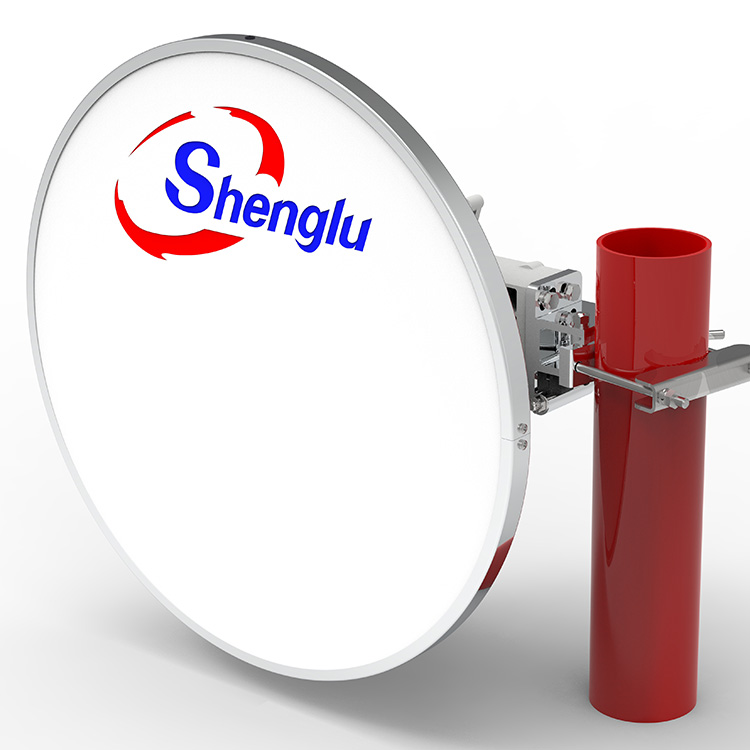

0.6m 21.2~23.6GHz Separated Dual-polarized Microwave Antenna SLA0623D3S00B20
Model Number: SLA0623D3S00B20
Electrical Specifications
Frequency (GHz) 21.2~23.6
Polarization Dual (V & H)
Gain , Low(dBi) 40.2
Gain, Mid(dBi) 40.7
Gain, Top(dBi) 41.2
Beam Width 1.55°
Cross-pol. Discrimination_XPD (dB) 30
F/B Ratio (dB) 66
ISO.(dB) 35
VSWR / RL (dB) 1.3/17.7
Regulatory Compliance ETSI EN 302217 Range 3 Class 3
-
Description
