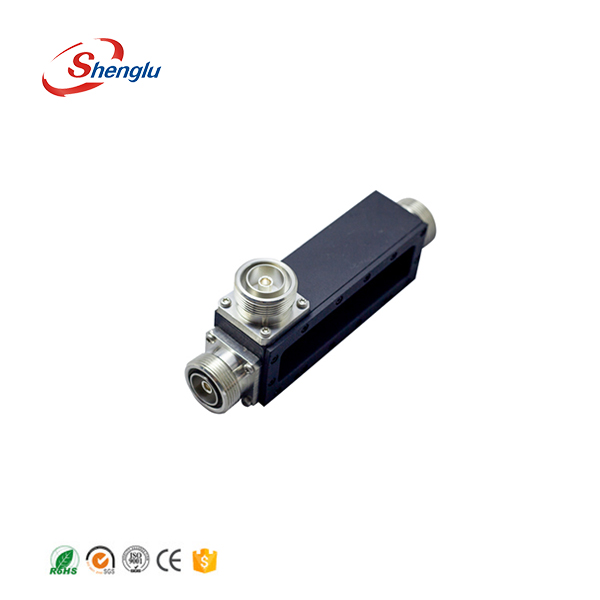

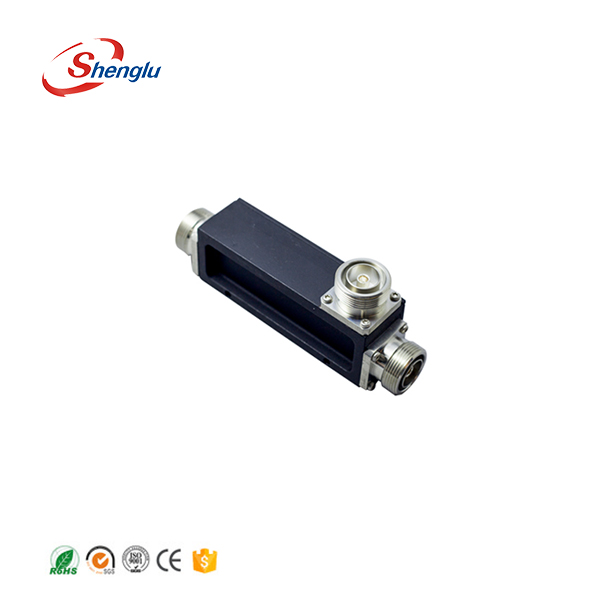

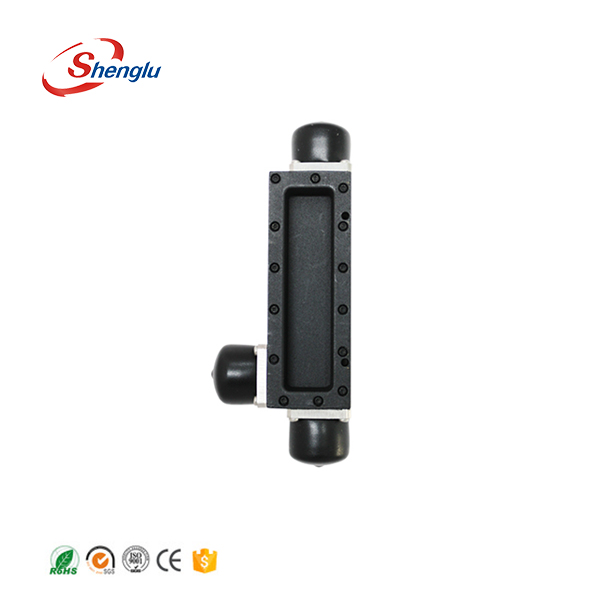

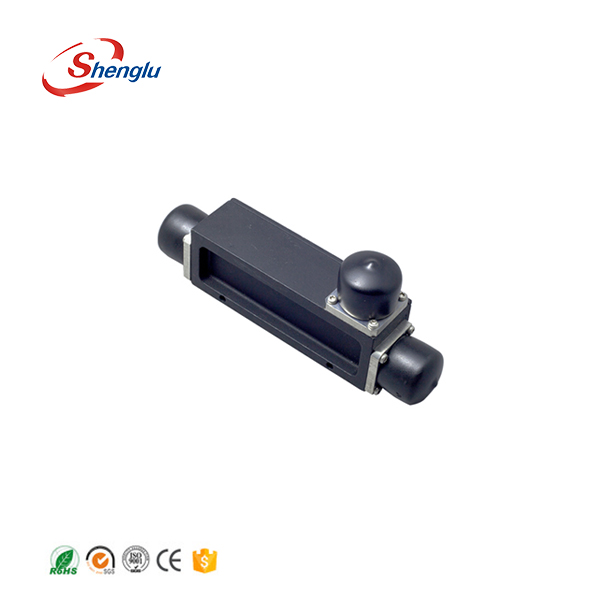

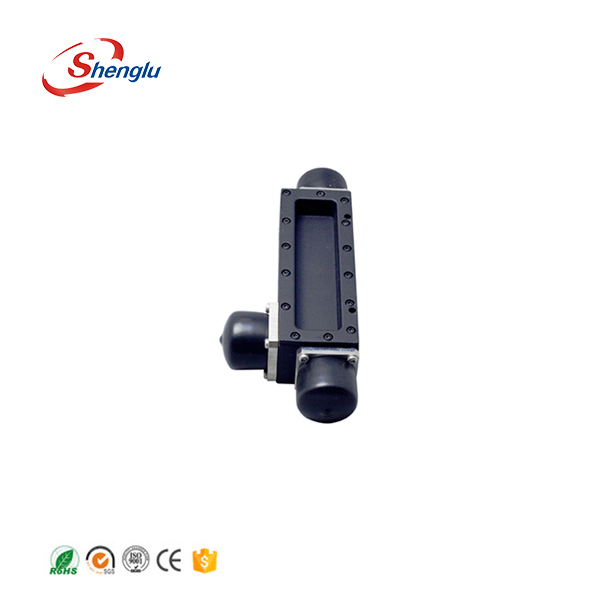

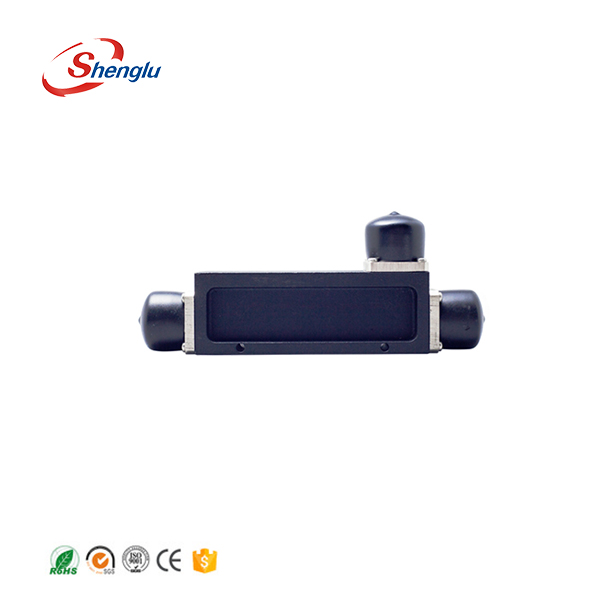

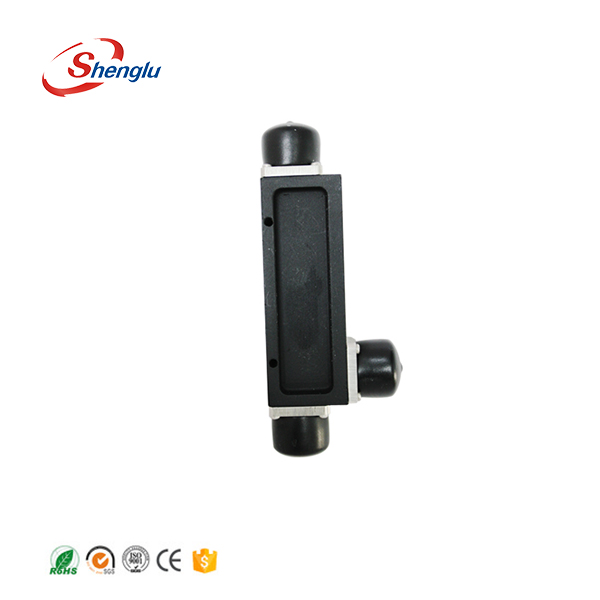

SL22530A
Wide Frequency Band 694-2700MHz
Low Passive Intermodulation(-155dBc)
Low VSWR & Insertion Loss
High Isolation, Outdoor IP66
Widely used for In-building Solutions
Freq(MHz) 694-2700
Coupling(dB) 5/6 7/8 10 13/15 20 30
IL(dB) ≤2.1/≤1.7 ≤1.45/≤1.3 ≤0.8 ≤0.7/≤0.5 ≤0.4 ≤0.4
Accuracy(dB) ±0.8/±0.8 ±0.8/±0.8 ±1.0 ±1.0/±1.0 ±1.2 ±1.5
Isolation(dB) ≥25/≥26 ≥27/≥28 ≥28 ≥31/ ≥33 ≥35 ≥45
VSWR ≤1.25
PIM(dBc) ≤-155dBc@2*43dBm
Power(W) 500 (average)
Impedance 50 ohm
Connector 7/16 DIN-female
Color Black
Temp(deg) -40~+65
Application Indoor or Outdoor, IP66
Dimensions 168mm*67mm*36.5mm
Low Passive Intermodulation(-155dBc)
Low VSWR & Insertion Loss
High Isolation, Outdoor IP66
Widely used for In-building Solutions
Freq(MHz) 694-2700
Coupling(dB) 5/6 7/8 10 13/15 20 30
IL(dB) ≤2.1/≤1.7 ≤1.45/≤1.3 ≤0.8 ≤0.7/≤0.5 ≤0.4 ≤0.4
Accuracy(dB) ±0.8/±0.8 ±0.8/±0.8 ±1.0 ±1.0/±1.0 ±1.2 ±1.5
Isolation(dB) ≥25/≥26 ≥27/≥28 ≥28 ≥31/ ≥33 ≥35 ≥45
VSWR ≤1.25
PIM(dBc) ≤-155dBc@2*43dBm
Power(W) 500 (average)
Impedance 50 ohm
Connector 7/16 DIN-female
Color Black
Temp(deg) -40~+65
Application Indoor or Outdoor, IP66
Dimensions 168mm*67mm*36.5mm
-
