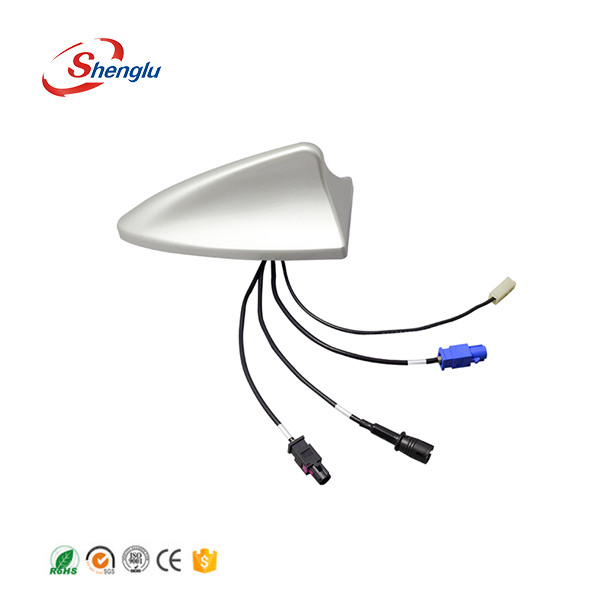

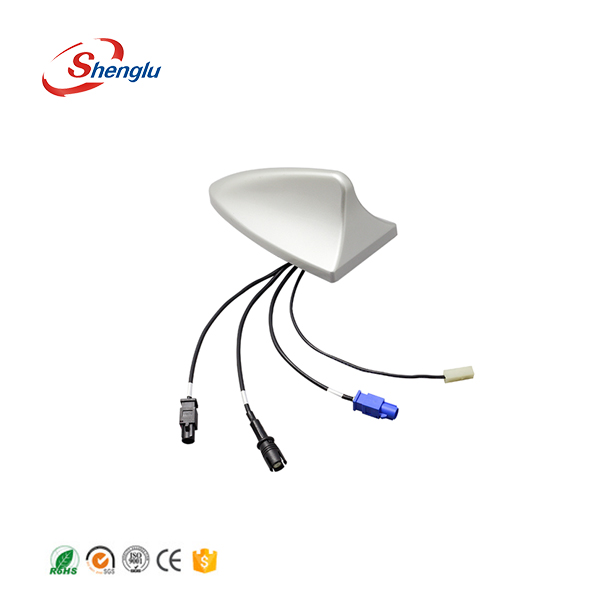

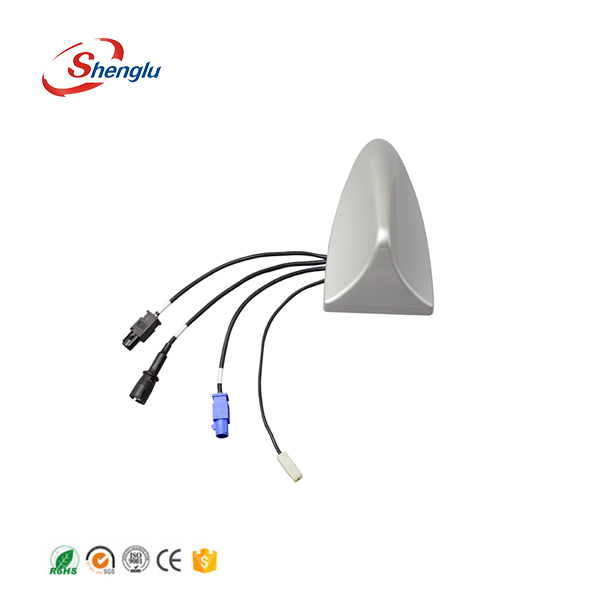

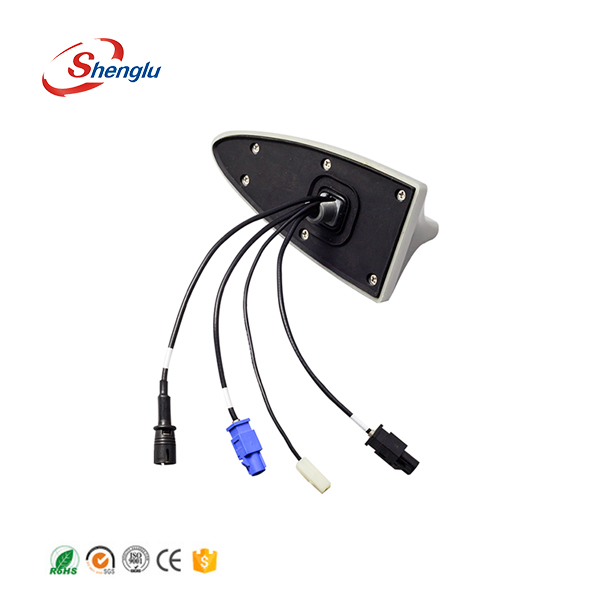

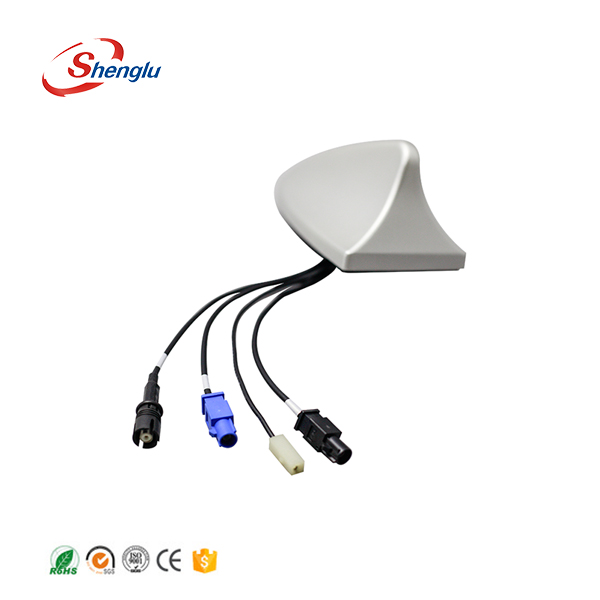

SL10853A
Item Name Specification
GPS Antenna Electrical Parameter
Frequency Range (1575.42±1.023)MHz
Gain 28±3dB
Pass band Ripple ≤2.0
Polarization RHCP
VSWR ≤2
Noise Factor ≤1.5dB
Out of band attenuation
≥40dB @ fo-100MHz
≥28dB@ fo+100MHz
Power DC+3.3~+5V( Coaxial Feed)
Current ≤30mA(@+3.3V）
Input Connector SMA-J3(Optional)
-
