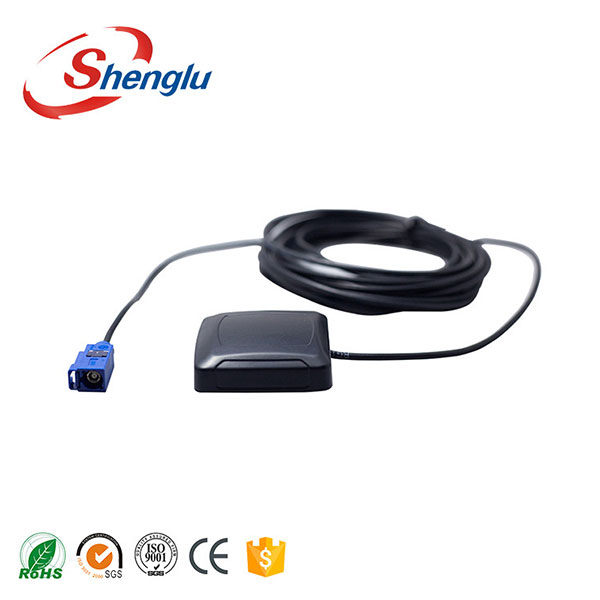

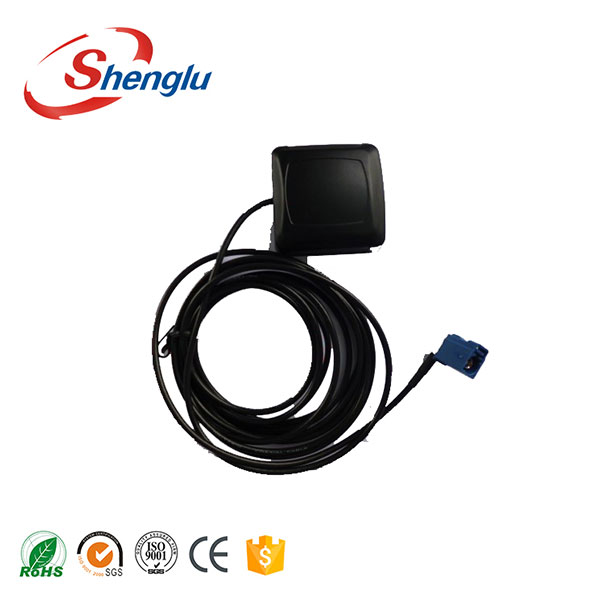

SL10943A
Item Name Specification
Electrical Specifications
Frequency Range (MHz) 1567.75±9
Gain (dBi) >3
Axial ratio (dB) <7
VSWR <2
Polarization RHCP
LNA Electrical Specifications
Frequency Range ( MHz) 1567.75±9
Gain ( dB) (28±2)@3.3V
VSWR ≤2.0@3.3V
Noise Factor (dB) ≤1.5dB@3.3V
Out of band attenuation
（dB）
>30@fo ±
100MHz
In-band flatness (dB) <1
Power ( V) DC (2.8~5)V
Supply Electricity (mA) <20@3.3V
-
Description
